Build a Cigar Box Diddley Bow!

Instructions below on how to build an incredible, primitive homemade one-string cigar box guitar!

(Scroll to the bottom for original cigar box guitar music by Kevin!)


TOOLS! You’ll need ‘em.

Drill (electric or manual)

¼-inch drill bit

1/32-inch drill bit

A small hack saw

Screwdrivers

Files

I suggest wood glue be on the ready as well, just in case.


Hardware! Bolts, screws, any piece of metal the proper size can become a bridge and/or nut. For this example we’ll use:

One (1)  2x¼-inch eye bolt with a wing nut and washer to fit it for your tuner.

Two (2) 2x¼-inch eye bolts (or substitute two allen head hex socket of the same approximate size for a nut and a bridge

For sound hole embellishments, I’m using two grommets, but it’s all a matter of choice what you use—if you use anything at all.

1 guitar string of any gauge


One empty cigar box and a three-foot dowel

Tip: Do not get a cigar box from a convenience store as they are thin and made of cardboard. Get one from a true tobacco/cigar store. Do not spend more than $3 for a paper-covered box and no more than $5 for an all-wood box unless it is a specific box. Some places give them away, but most will charge something. A box in the range of 9" wide, 7" deep and 1 1/2" thick is fine. Anything much smaller and you will not be able to get a lot of sounds. Too big is not a problem but you will have to adjust the measurements of wood. Every box is and sounds unique. If you don’t know what it’ll sound like, go for size and appearance.

A three-foot dowel or broom/mop handle.

Many people use a 3/4" x 1 1/2 piece of poplar or pine. We’re using a broom handle or dowel this time.

Also pictured is the rest of the hardware we’ll use.

notching the  box.jpg

Measure the circumference of your dowel (or the dimensions of your alternative choice) and transfer them to your box as seen in the pic above and cut out a notch in the box center at both ends to accommodate your neck. Don’t cut it too big or too deep.

boring the sound holes 2.jpg

Sound holes can be any size, any number. I’m boring 1/4-inch holes to accommodate grommets of that size for my sound holes—two, decidedly.

drilloing hole for string tuner.jpg

Drill a 1/4-inch hole near the top of your dowel for your eye bolt tuner.

drilling string (hole) holder.jpg

Drill a 1/32-inch hole near the bottom of the dowel form your string.

prepared box and neck.jpg

The cigar box and the dowel neck or prepared!

fitting body to neck.jpg

Let’s finish turning your box and neck into a guitar!

The dowel should fit snugly into the box, as seen! in the picture.

You can see the hole at the bottom of the dowel where the string will eventually be inserted.

taking shape.jpg

Close it up.

Some boxes have a clasp that keeps the box closed, some do not.

adding the eye bolt tuner.jpg

Make it stand out.

Insert one of your eye bolts as picture at the top of your dowel.

You can use instead a regular guitar tuner as well, which can be purchased in guitars store or online through C.B. Gitty Crafter Supply, my favorite source.

But, since we’re making a very primitive but impressive sounding guitar, we’ll use an eye bolt.

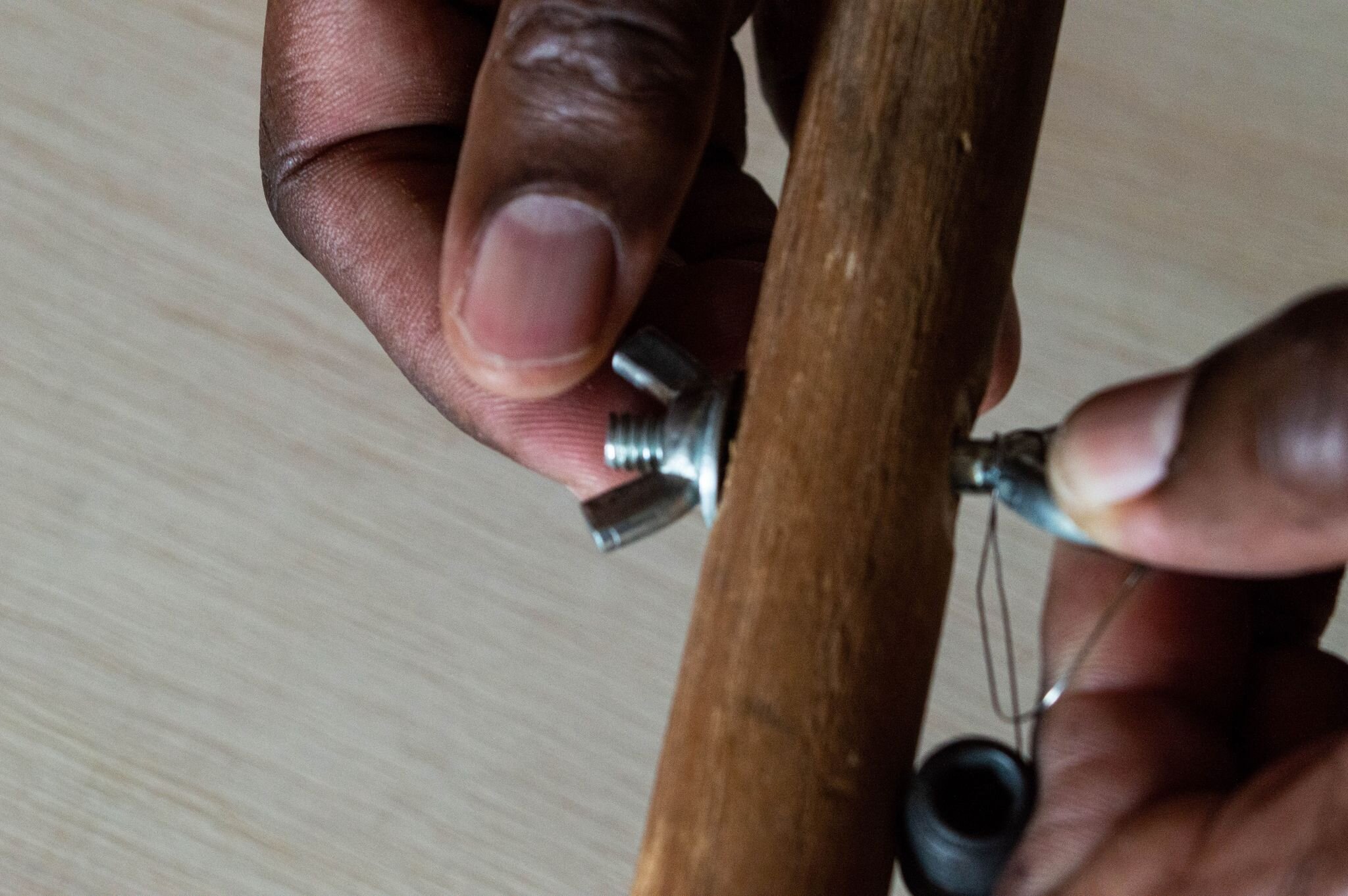

adding wingnut and washer.jpg

Make it stand out.

Attach the wing but and washer as shown, but leave it loose for now. If you like, you can add the bolt or Allen head for your nut. But it might be best to wait to add that and the bridge when you wind the string up, which comes next.

strnging her up.jpg

Insert the strong into the hole at the bottom of your dowel.

string into tuner.jpg

Tie the end of the string to the eye bolt like so.

winding her up.jpg

Make it stand out.

Turn the eye bolt to wrap the string around it, until the string is tight enough to insert the bridge and nut, as you see. You will hear the string take on tone, which rises the tighter you wind it. Don’t get carried away and tighten the string too tight, or it will break.

The little brass hold at the bottom left of the guitar is a 1/4-inch jack, so this little baby can be plugged in to an amplifier. It’s wired for sound!

And VOILA! La Bow Diddley…er, the DIDDLEY BOW! You did it! You’re done!

Or, rather…the fun is just beginning!

Voila a diddley bow.jpg
and to the side.jpg
tunring it around.jpg

Slide



You’ll need a guitar slide to play this one-stringer. You can make them from an old wine bottle or purchase them at a guitar store or online at C. B. GITTY. They come in a variety of materials and sizes and thickness. Choose which works for you. Or, if you’re like avid guitar players, collect them for all musical occasions.

other diddley bows.jpg
